Overview

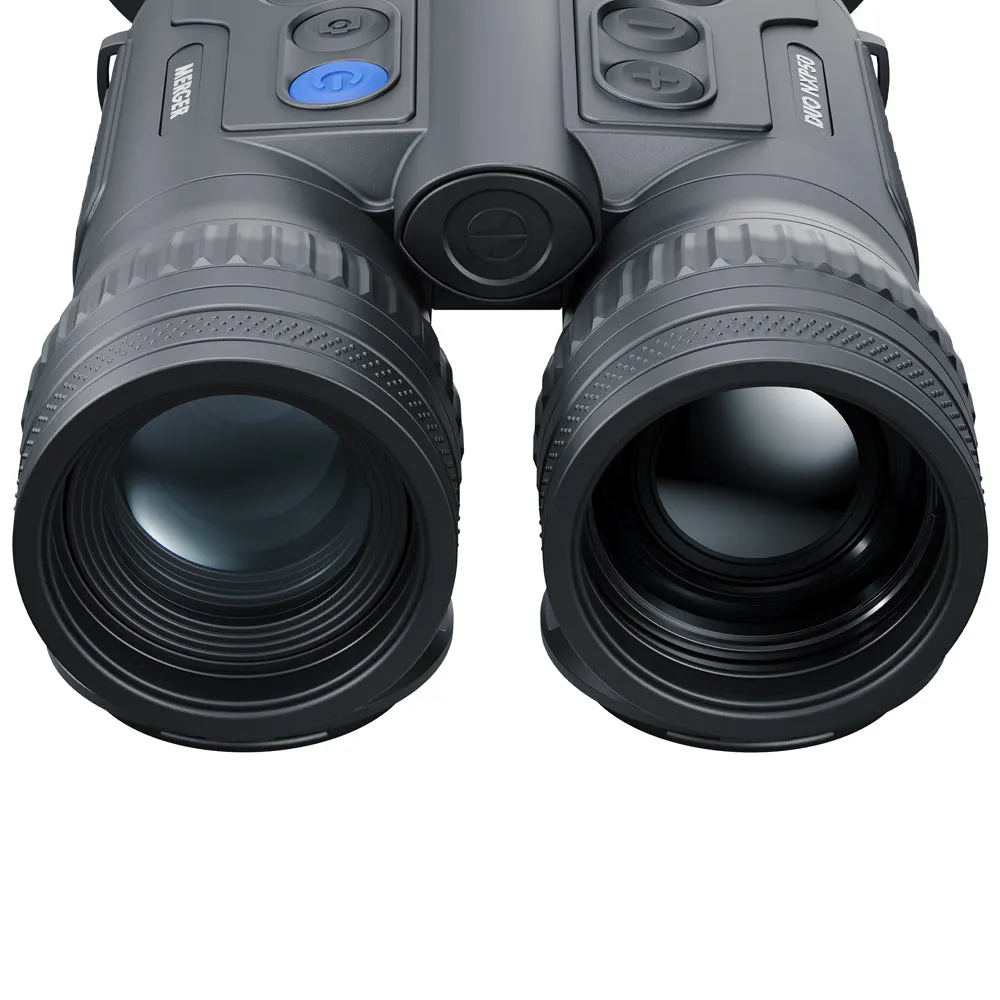

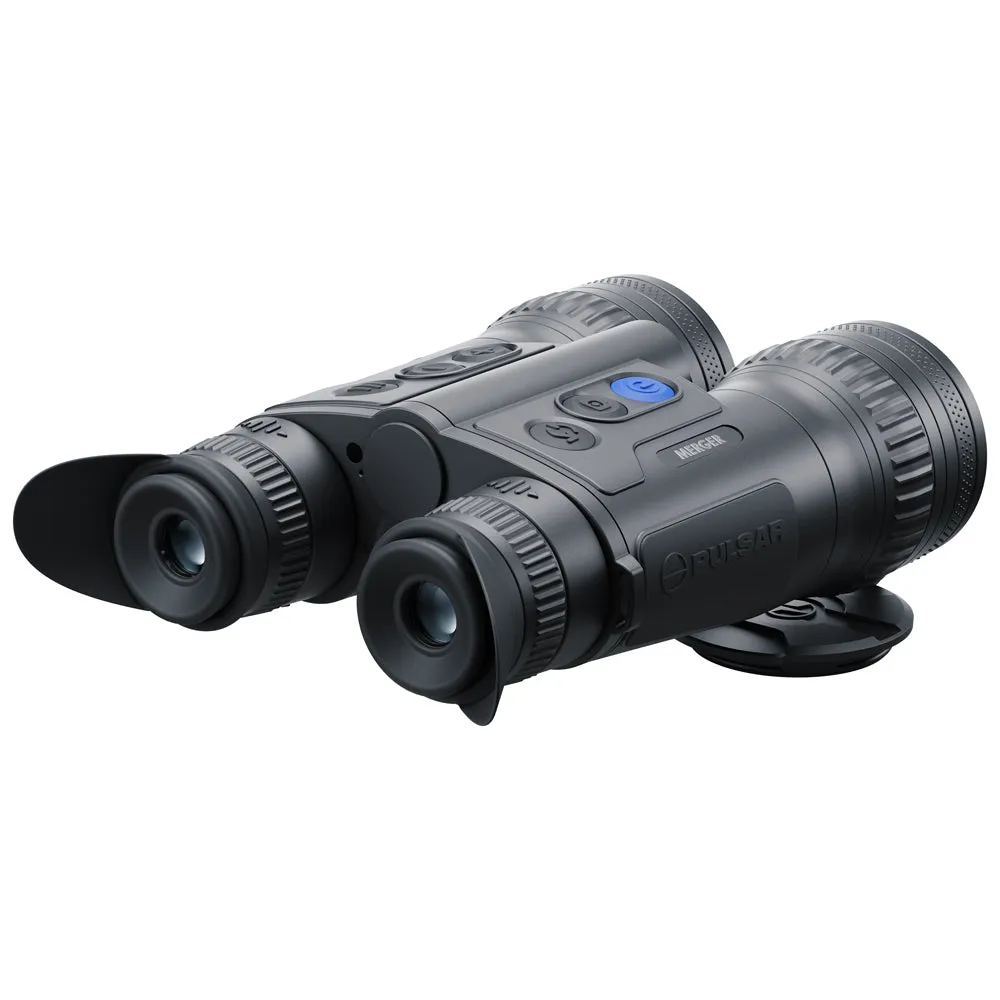

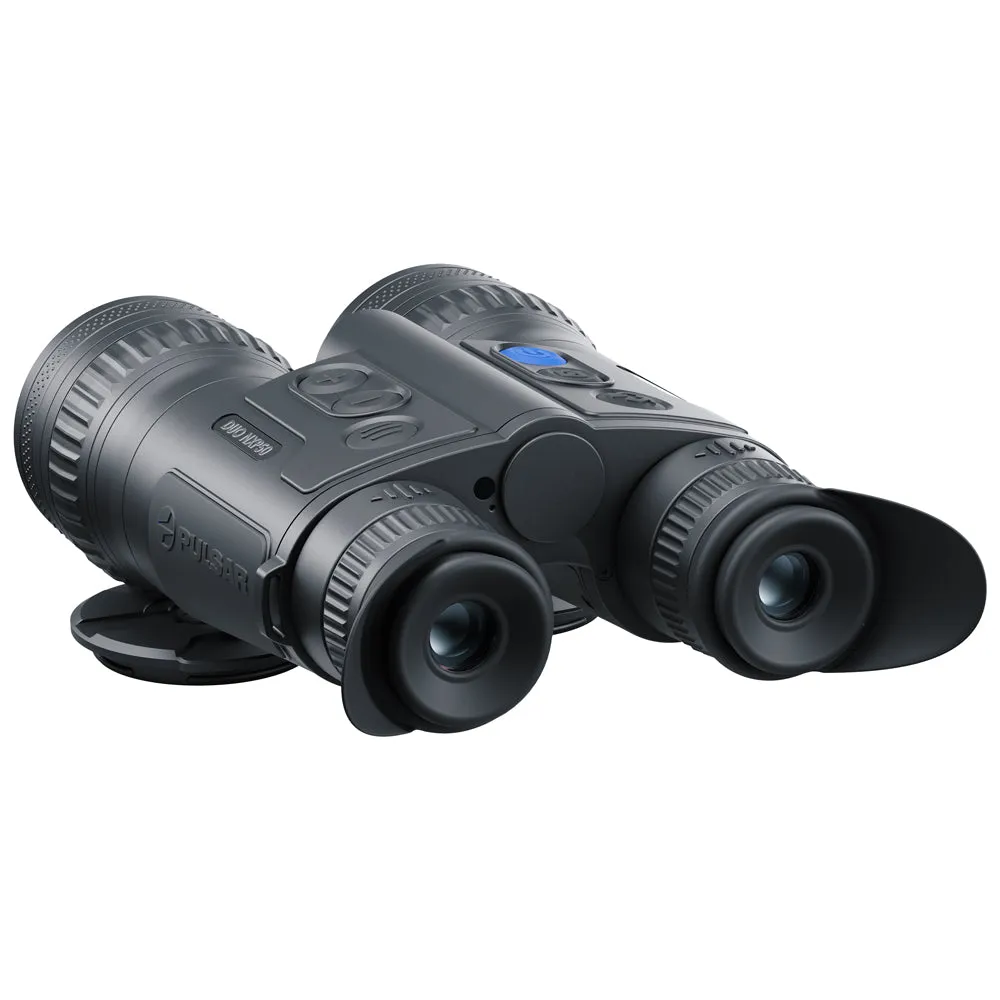

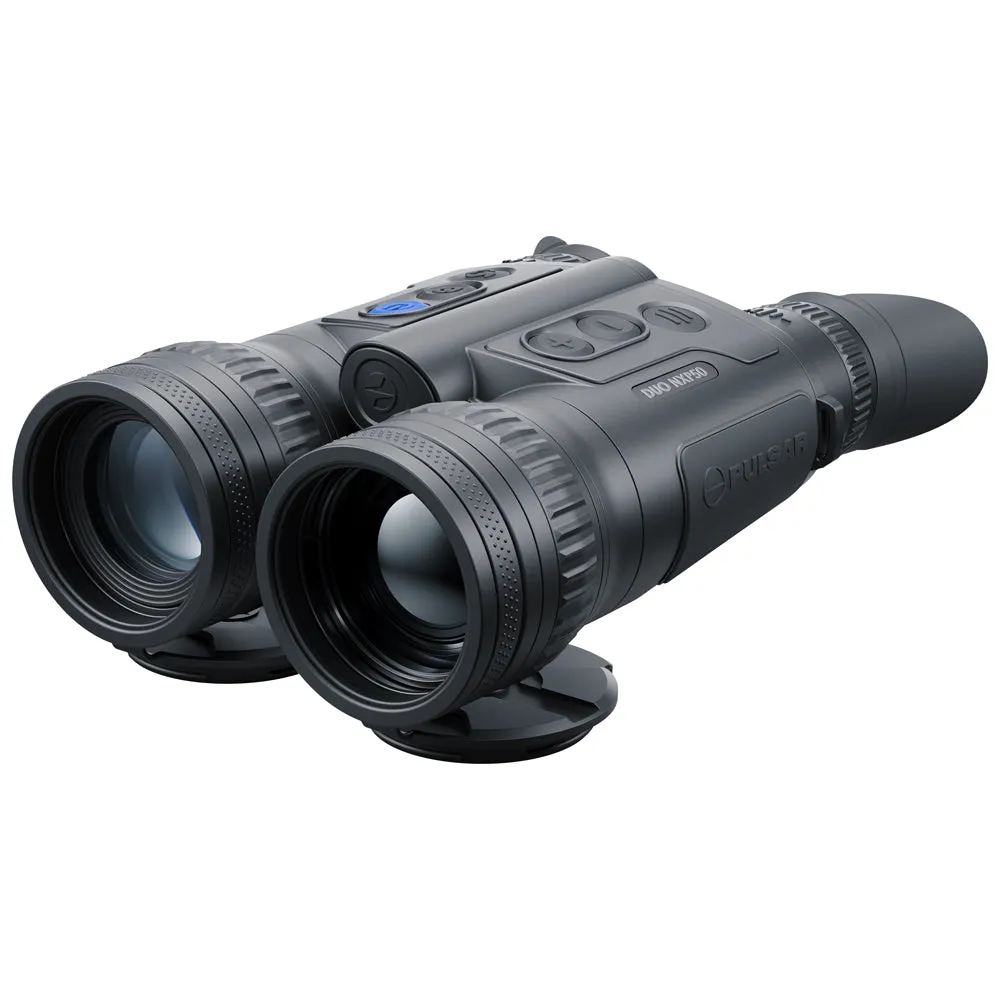

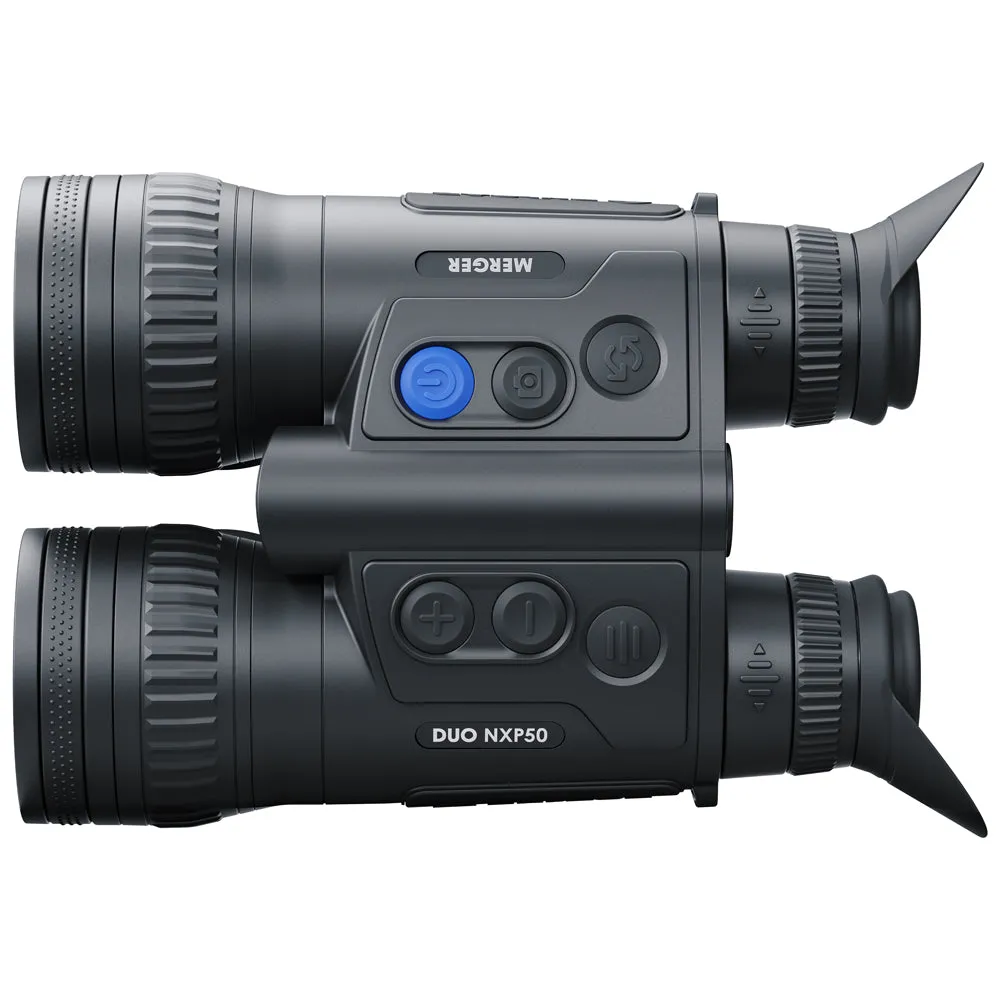

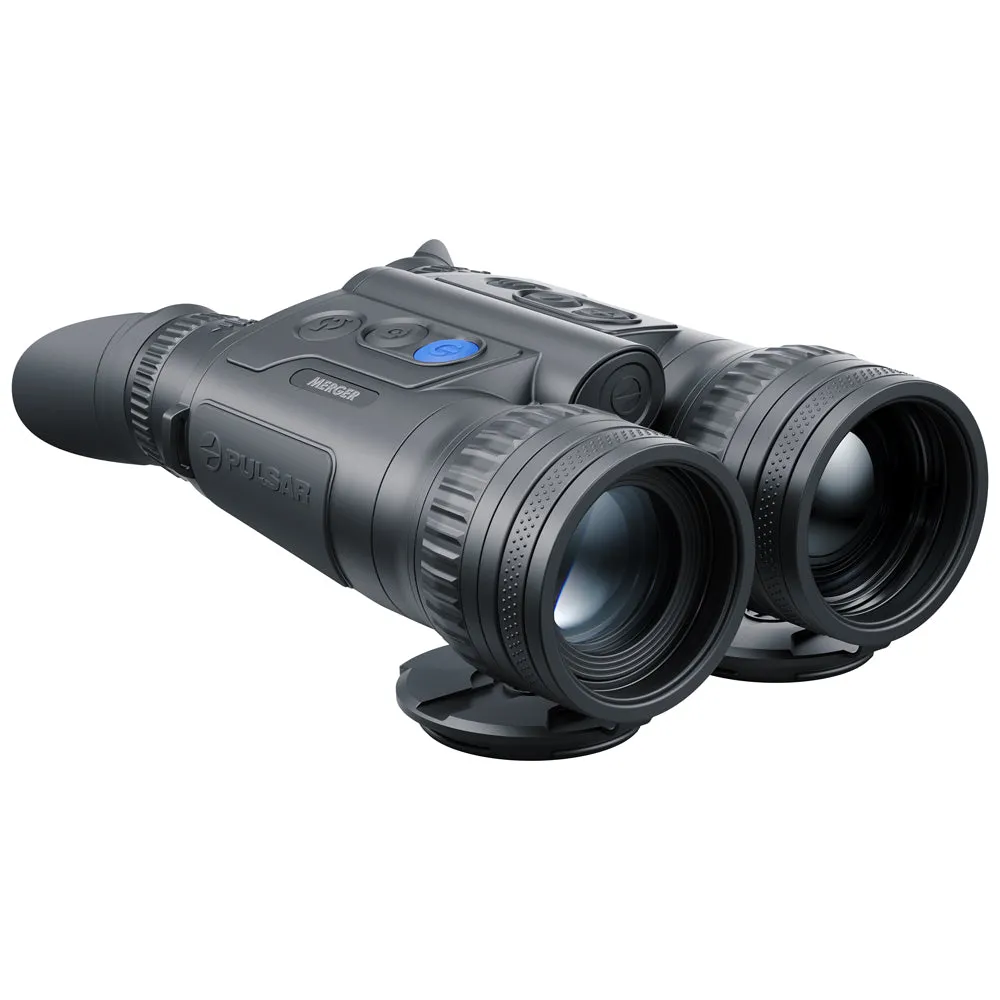

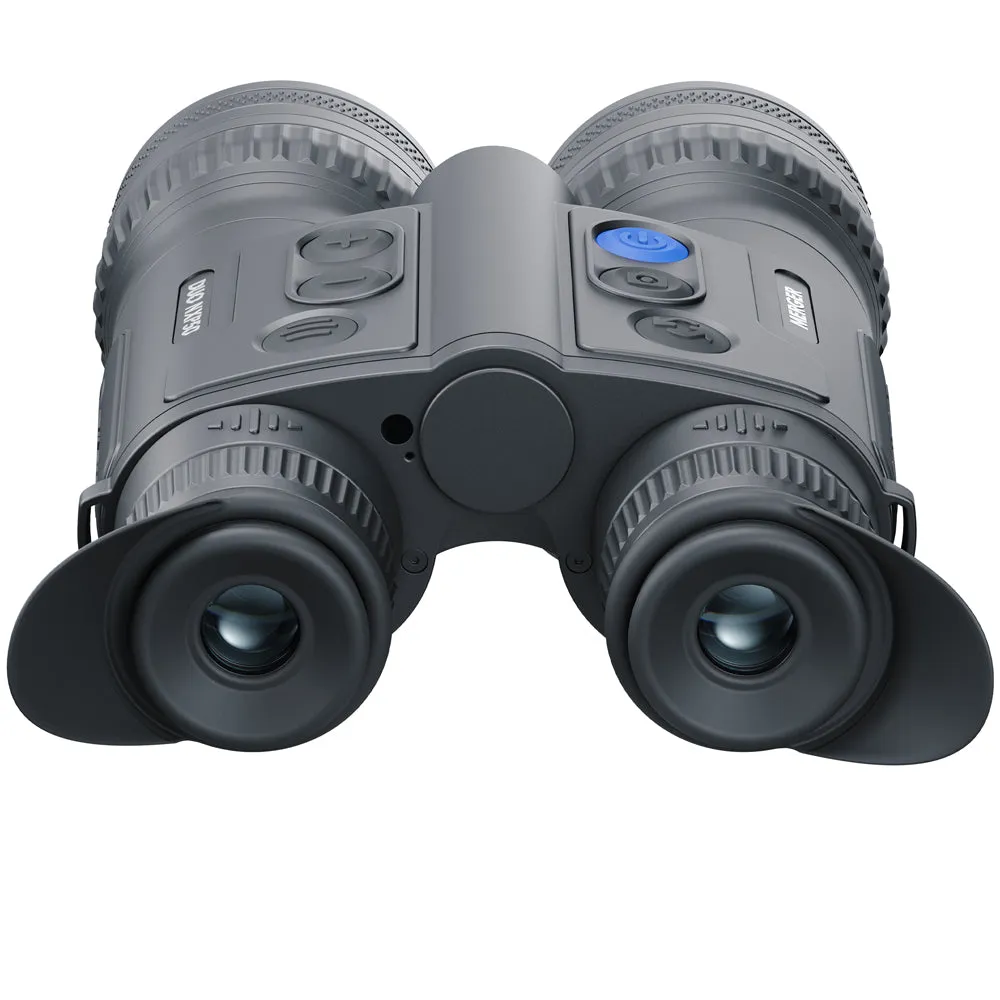

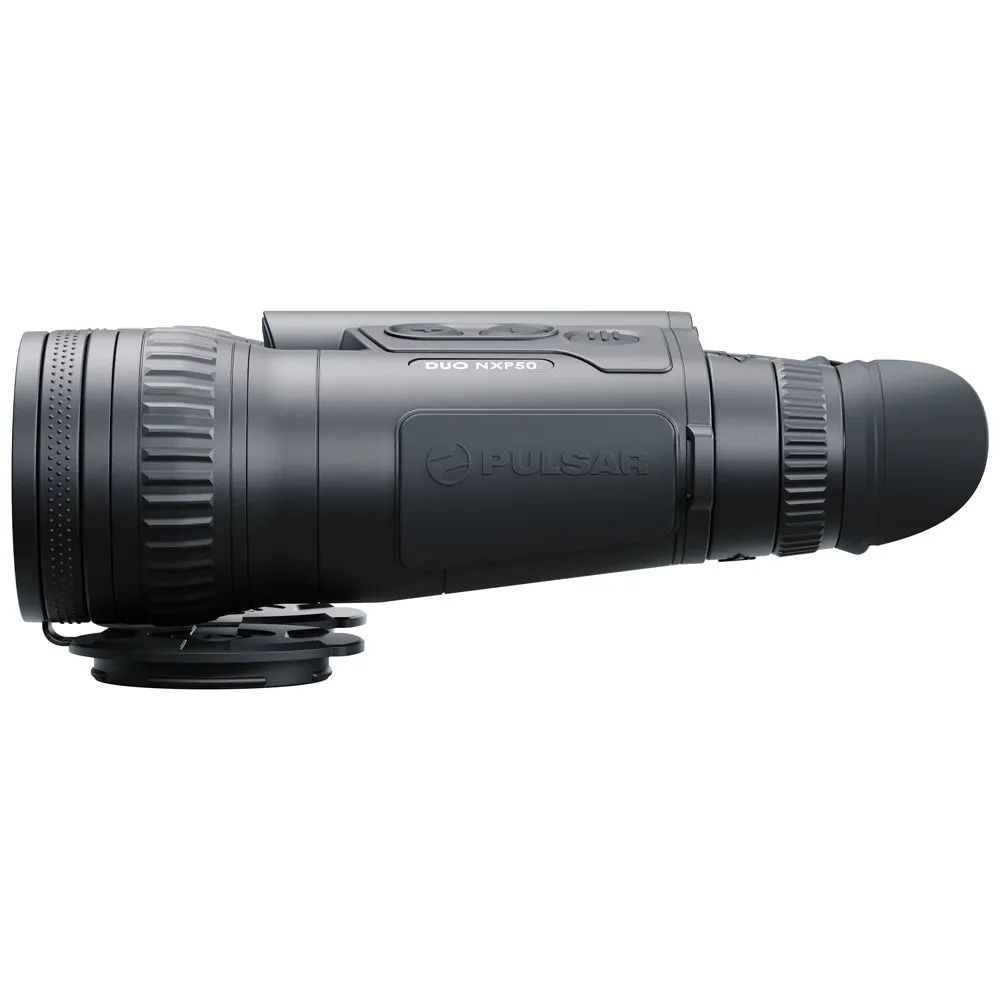

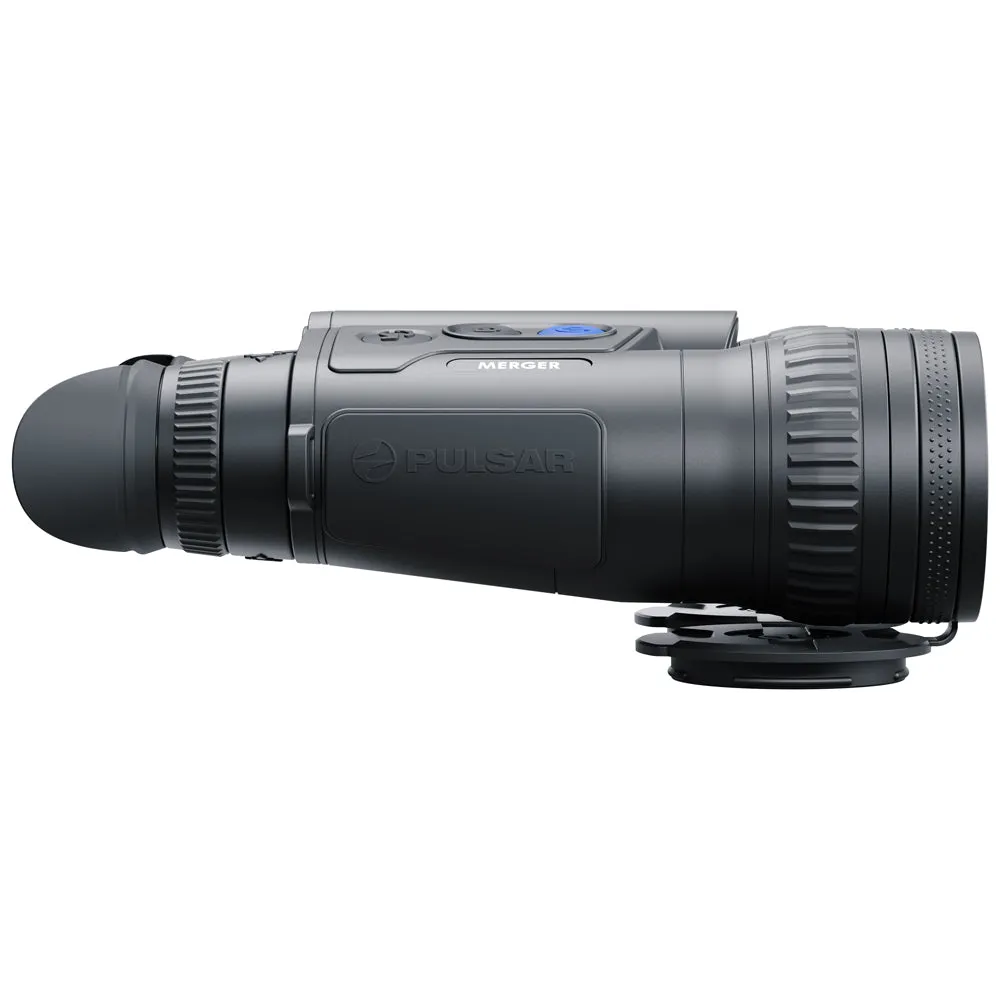

The Merger Duo NXP50 is Pulsar’s first multispectral binocular. It combines thermal and digital channels to provide exceptional detection, recognition, and identification capabilities for day and night observation.
The Merger Duo NXP50 offers several observation modes:
- The highly capable thermal channel ensures extreme thermal sensitivity, making it unbeatable for detection and observation in any weather conditions and at various distances.
- The full-HD resolution ultra-low-light night vision reveals intricate details and features of the observed object.
- The Picture-in-Picture mode combines both channels, ensuring comprehensive situational awareness and preventing you from missing any details.
Features
- Multispectral thermal and night vision device
- Extra low-light Full-HD digital night vision
- Highly sensitive 640x480 @ 17 µm / NETD < 25 mK thermal sensor
- Thermal, digital and combined viewing modes
- Advanced Pulsar Image Boost technology
- Classical binocular design
- Ergonomic and functional carrying case
- Clear trophy identification
- Rugged magnesium alloy housing
- Built-in photo and video recorder
- Invisible IR illuminator for digital night vision
- High-contrast HD AMOLED displays
- IPX7 submersion waterproof rated
- Operation in extreme temperatures -25 to 50°C
Specifications
| Thermal sensor resolution | 640x480 pixels |
|---|---|
| Thermal sensor pixel pitch | 17 µm |
| Thermal sensor NETD | < 25 mK |
| Thermal sensor frame rate | 50 Hz |
| Digital sensor type | CMOS |
| Digital sensor resolution | 1920x1200 pixels |
| Display type | AMOLED |
| Display resolution | 1280x960 pixels |
| Magnification - thermal | 3 - 24x |
| Magnification - digital | 2 - 16x |
| Objective lens - thermal | 50 mm/F1.0 |
| Objective lens - digital | 50 mm/F1.4 |
| Field of view - thermal | 12.4° |
| Field of view - digital | 21.7° |
| Eye relief | 12 mm |
| Diopter adjustment | -4 / 3 dptr |
| Interpupillary distance | 63 -74 mm |
| Detection range - thermal | 1,000 m (1,968 yds) |
| IR illuminator type | Attachable |
| IR wavelength | 940 nm |
| Battery type | Built-in Li-ion Removable Pulsar APS3 Li-ion |
| Battery life | 7 hrs |
| External power supply | 5V/9V USB Type-C |
| Operating temperature | -25 to 50°C (-13 to 122°F) |
| Level of protection | IPX7 submersible waterproof |
| Dimensions | 8.1" x 5.5" x 2.9" |
| Weight | 42.3 oz |
